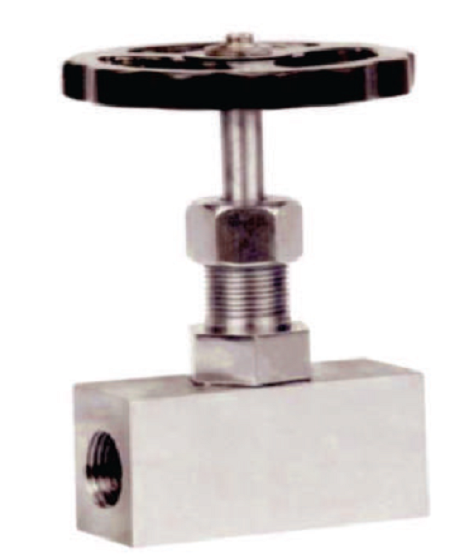

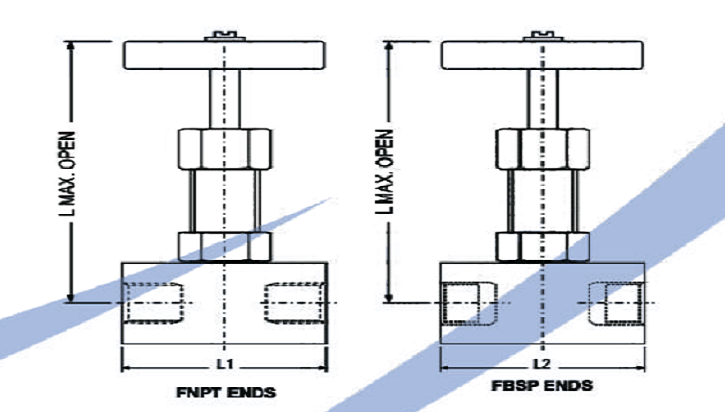

GLOBAL ISOLATION VALVES HIGH FLOW SERIES SCREWED ENDS

products
DESCRIPTION :-

Designed for isolation of fluid lines with minimum pressure drop. Threaded End connections.


Test Pressure:   Ambient Temperature
Hydostatic:   Body - 630 Kg/cm2, Seat - 420 Kg/cm2
Pneumatic:   Seat - 60 Kg/cm2
Gland Packing:   For temp upto 100oC PTFE/VITON 'o' Ring / PTFE pack. For temp 101oC to 160o : PTFE. For Temp above 160oC : GRAPHOIL
Material:   A 105, A 479 SS 304, A479 SS 316, A 182 Gr. F 316 SS Monel, Hasteolly.
Finish:   CS Zinc plated and dichromated, SS Natural

CONNECTION :-
SIZE L1 L PART NO. SIZE L2 L PART NO.
1/8" FNPT 76 90 2-MPGVNF-2 1/8" BSP 76 96 2-MPGVBF-2
1/4" FNPT 76 96 4-MPGVNF-4 1/4" BSP 76 96 4-MPGVBF-4
3/8" FNPT 76 96 4-MPGVNF-4 3/8" BSP 76 96 6-MPGVBF-6
1/2" FNPT 76 96 8-MPGVNF-8 3/8" BSP 76 96 8-MPGVBF-8
products

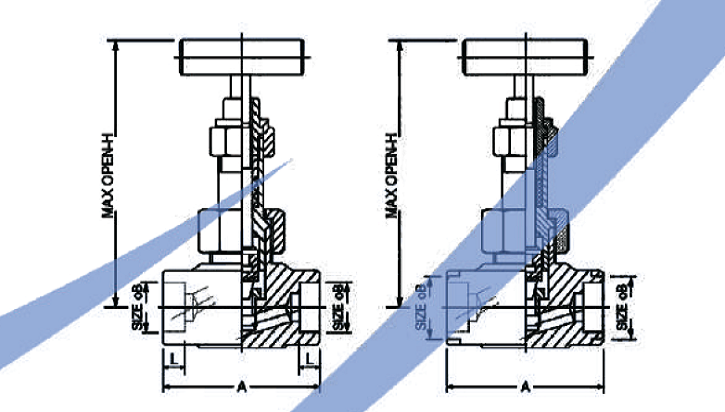

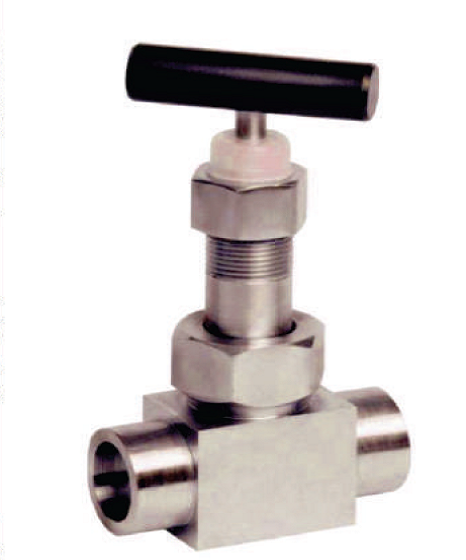

MINIATURE PATTERN GLOBE VALVE UNION BONNET TYPE SOCKET WELD / BUTT WELD ENDS

products
DESCRIPTION :-

A simple light weight design ideal for use in instrumentation and small installation for isolation in place of heavy bolted bonnet OS & Y type valves.


Test Pressure:   PERANSIB 16.34, 1996@250oC Room Temperature 800#, 1500#, 2500#
Hydostatic:   Body - 630 Kg/cm2, Seat - 420 Kg/cm2
Pneumatic:  & nbspSeat - 60 Kg/cm2
Ball Seal:   RPTFE, DELRIN, PEE
Gland Seal:   BUNA 'N', VITON
Material:   A 105, A 182 Gr. F 304/304L, A 182 Gr F 316/316L Monel, Hastelloy
Finish:   CS Zinc plated and dichromated, SS Natural
Pneumatic:   Seat - 6 Kg/cm2 - 6 Kg/cm2 - 6 Kg/cm2
Gland Packing:    PTFE : Standard, Graphoil : Temperatures above 1800oC
Material:   A 105, A 479 SS 304, A479 SS 316, A 182 Gr. F 316 SS Monel, Hasteolly.
Finish:   CS Zinc plated and dichromated, SS Natural

CONNECTIONS :-

SOCKET WELD ENDS PIPE

PIPE B SIZE L A H OPEN HT. PART NO.
1/2" FNPT 21.7 10.0 76 121 8-UBGVSQ-8
products

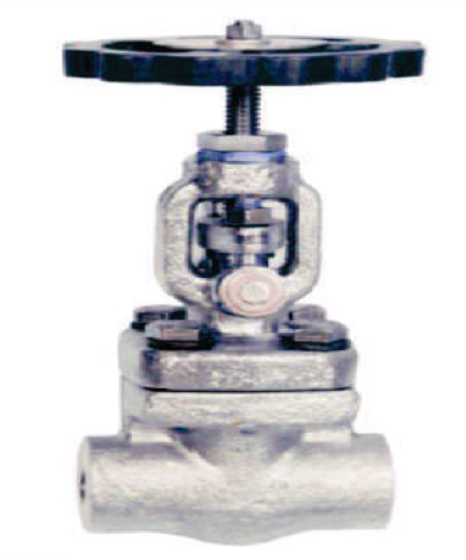

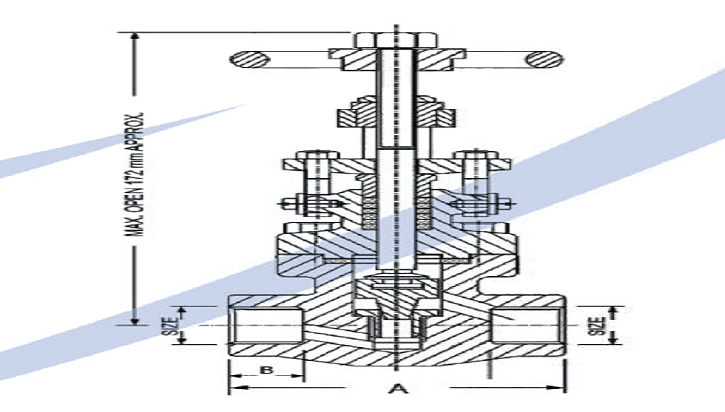

BOLTED BONNET GLOBE - TYPE ISOLATION VALVE SCREWED / SOCKET WELD ENDS

products
DESCRIPTION :-

Standard valves with screwed, socket weld and butt weld ends for use as isolation valves.


Specification:   Design : BS 5352, Testing : BS 6855
Test Pressure:   25oC Room Temperture. 800#, 1500# , 2500#
Hydostatic:   Body - 210 Kg/cm2 - 420 Kg/cm2 - 630 Kg/cm2, Seat - 153 Kg/cm2 - 270 Kg/cm2 - 420 Kg/cm2
Pneumatic:   Seat - 7 Kg/cm2 - 7 Kg/cm2 - 7 Kg/cm2
Gland Packing:   PRFE : Standard, Graphoil : Temparatures above 180oC
Material:   A 105, A 479 SS 304, A479 SS 316, A 182 Gr. F 316 SS Monel, Hasteolly.
Finish:   CS Zinc plated and dichromated, SS Natural

CONNECTION :-
SIZE A B PART NO.
1/2" NPT(F) / BSPT(F) 85 19 8-BBGVF-8
3/4" NPT(F) / BSPT(F) 85 19 12-BBGVF-12
1/2" NBSW 85 10 8-BBGVSW-8
3/4" NPT(F) / BSPT(F) 85 13 12-BBGVSW-12
