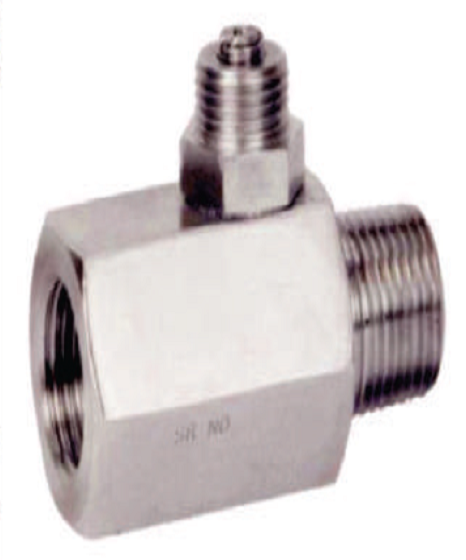

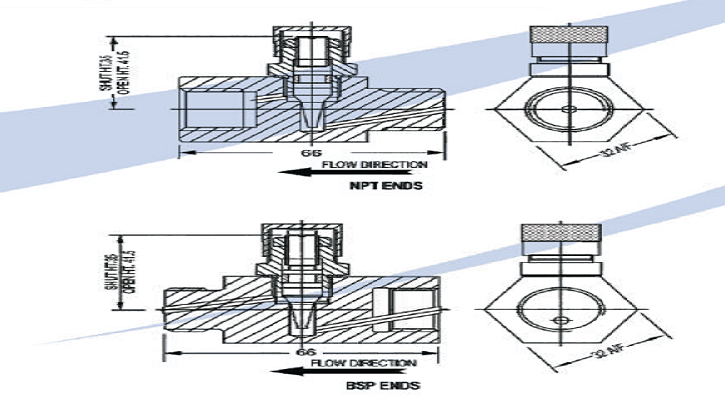

The adjustable pressure gauge damper draw a unique taper PIN / ORIFICE design for light range of damping. The damping can be adjusted to suit the fluid and the pulsation.
| Test Pressure: | Ambient Temperature |
|---|---|
| Hydostatic: | Body - 630 Kg/cm2, Seat - 420 Kg/cm2 |
| Pneumatic: | Seat - 60 Kg/cm2 |
| Gland Packing: | BUNA 'N', VITON |
| Material: | A 105, A 182 Gr. F 304/304L, A 182 Gr F 316/316L Monel, Hastelloy |
| Finish: | CS Zinc plated and dichromated, SS Natural |
| (INLET X OUTLET) | PART NO. |
|---|---|
| 1/4" MNPT x 1/4" FNPT | 4-SN-4 |
| 3/8" MNPT x 3/8" FNPT | 6-SN-6 |
| 1/2" MNPT x 1/2" FNPT | 8-SN-8 |
| 3/4" MNPT x 3/4" FNPT | 12-SN-12 |

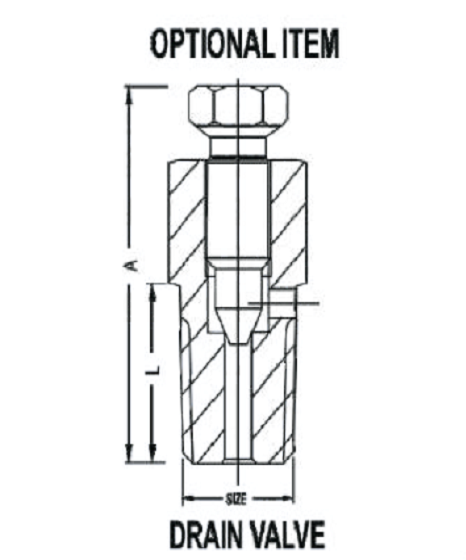

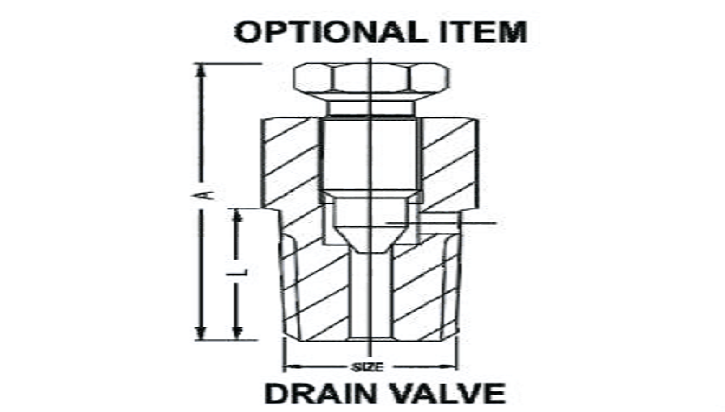

A compact miniature drain value to be used with multiport valves and transmitters for draining or venting of instruments.
| Size | A | L | PART NO. |
|---|---|---|---|
| 1/4" NPT | 38 | 14.2 | 4-DV |
| 3/8" NPT | 38 | 14.2 | 6-DV |
| 1/2" NPT | 48 | 19 | 8-DV |
| 3/4" NPT | 48 | 19 | 12-DV |

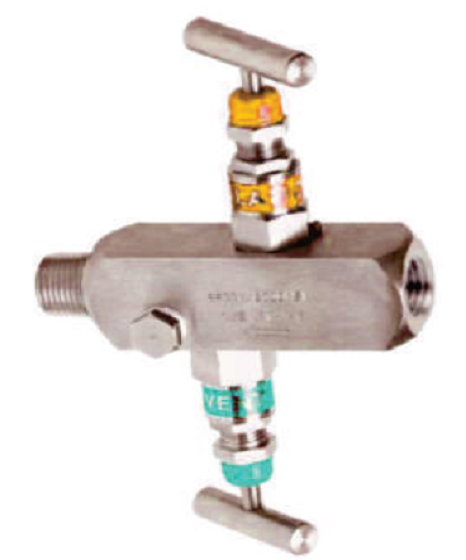

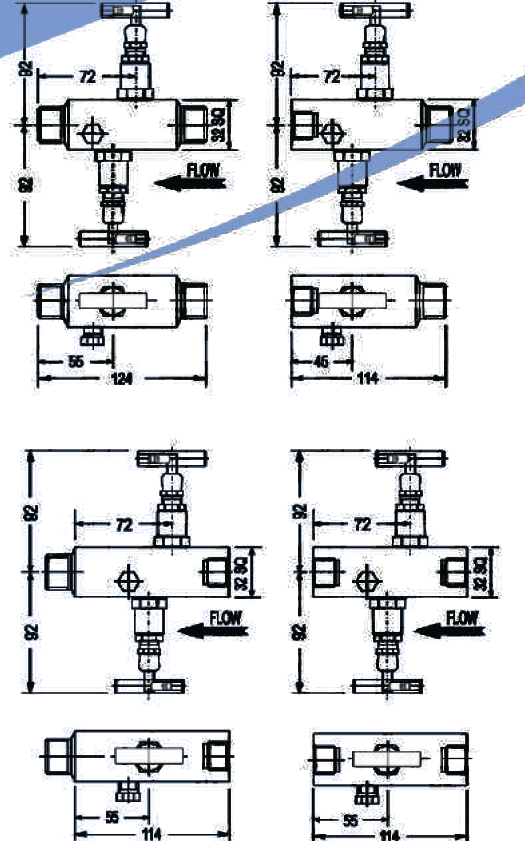

Design for use with gauges aitches and pressure Trasmitter. these gauge valve incorporates Two-valve with single outlet that combines isolation calibration and venting.
| Test Pressure: | Ambient Temperature |
|---|---|
| Hydostatic: | Body - 630 Kg/cm2, Seat - 420 Kg/cm2 |
| Pneumatic: | Seat - 60 Kg/cm2 |
| Gland Packing: | PTFE : Standard., Graphoil : Temperatures above 180oC |
| Material: | A 105, A 182 Gr. F 304/304L, A 182 Gr F 316/316L Monel, Hastelloy |
| Finish: | CS Zinc plated and dichromated, SS Natural |
| (INLET X OUTLET) | PART NO. |
|---|---|
| 1/2" MNPT x 1/2" MNPT | 8-DBBVM/M-8 |
| 1/2" MNPT x 1/2" FNPT | 8-DBBVM/F-8 |
| 1/2" FNPT x 1/2" FNPT | 8-DBBVF/F-8 |
Note :- Also available with BSP and BSP Taper pipe threads bigger connections on request.
