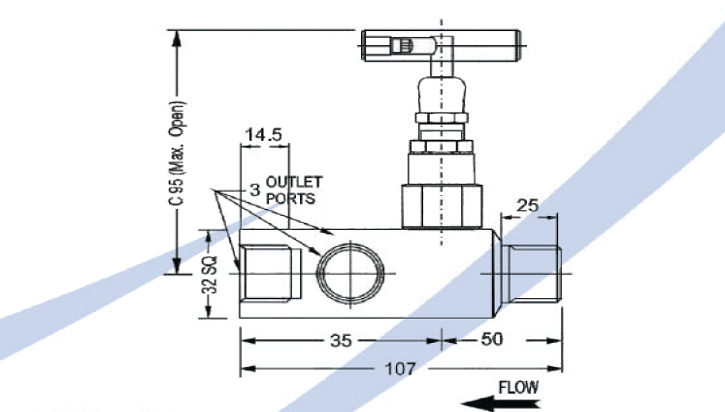

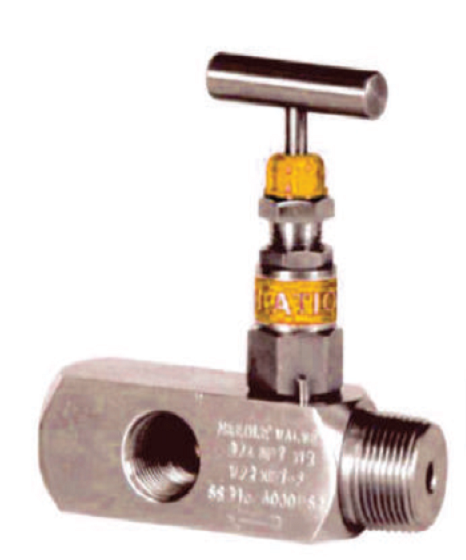

Multiport gauge valve is designed for giving the user flexibility in positioning of gauges or pressure swicthes. These valves can be supplied with vent valve and blanking plug separately.
| Test Pressure: | Ambient Temperature |
|---|---|
| Hydostatic: | Body - 630 Kg/cm2, Seat - 420 Kg/cm2 |
| Pneumatic: | Seat - 60 Kg/cm2 |
| Gland Packing: | PTFE : Standard., Graphoil : Temperatures above 180oC |
| Material: | A 105, A 182 Gr. F 304/304L, A 182 Gr F 316/316L Monel, Hastelloy |
| Finish: | CS Zinc plated and dichromated, SS Natural |
| Optional Items: | Plug at Outlet End: Drain / Vent Valve |
| (INLET X OUTLET) | PART NO. |
|---|---|
| 1/2" MNPT x 1/2" FNPT | 8 MPVMF-8 |
| 1/2" FNPT x 1/2" FNPT | 8 MPVFM-8 |
Note :- Also available with BSP and BSP taper threads.

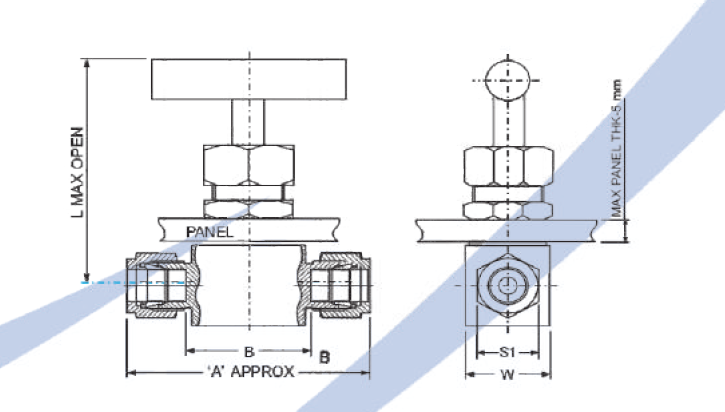

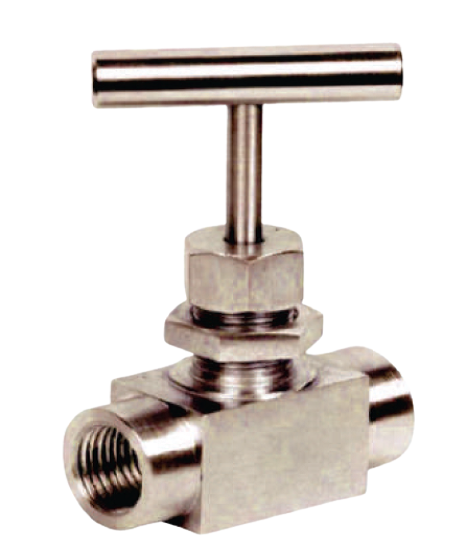

Needle valve with down stream vent for usage with Static pressure Gauge and Instrument installation for isolation and venting.
| Test Pressure: | Ambient Temperature |
|---|---|
| Hydostatic: | Body - 630 Kg/cm2, Seat - 420 Kg/cm2 |
| Pneumatic: | Seat - 60 Kg/cm2 |
| Gland Packing: | BUNA 'N', VITON |
| Material: | A 105, A 182 Gr. F 304/304L, A 182 Gr F 316/316L Monel, Hastelloy |
| Finish: | CS Zinc plated and dichromated, SS Natural |
| (INLET X OUTLET) | PART NO. |
|---|---|
| 1/2" MNPT x 1/2" MNPT | 8-SBBVM/M-8 |
| 1/2" MNPT x 1/2" FNPT | 8-SBBVM/F-8 |
| 1/2" FNPT x 1/2" FNPT | 8-SBBVF/F-8 |
Note :- Also available with BSP and BSP Taper pipe threads bigger connections on request.
